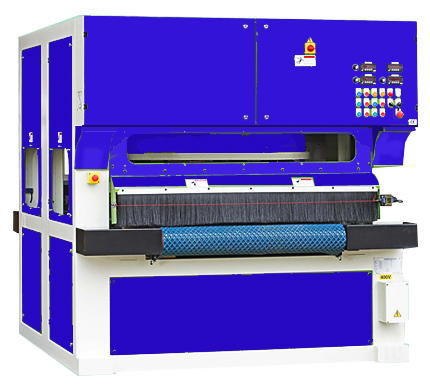

Profile Door Sander
Features:

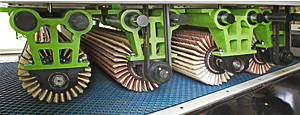

l If you always have problem for a very thin sanding grain on the surface of wood piece,then you have ti use this R4 brush sanding system to solve this headache.
l R4 system supplied(1.) Not only the facility quick-release function for the user can quickly change the abraded sanding strips, but also can quickly release the wear off sanding head to replace new head to the machine

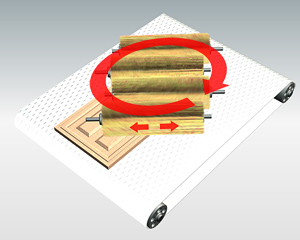

l Planetary sanding with oscillation sanding function by rotary carousel supplied a perfective efficient sanding for working-pieces, able to touch every where of work-piece surface without missing any inches, meantime to solve any sanding grain on the work-piece surface
Model
FBS-1100 R4
FBS-1400 R4
Max. working width :
43" (1100mm)
54" (1400mm)
Max. working height :
5" (127mm)
Min Work-pieces :
4" (100mm) x 6.3" (160mm)
Min.Work-piecesthickness :
3/16" (5mm)
Carousel speed :
4~24 R.P.M
Variable Feeding speed :
2~12M/min
Speedof Sanding Wheel :
100~1200 R.P.M
Carousel Motor :
2HP
Sanding Head Motor :
2HP x 4
3HP x 4
Conveyor motor :
2HP (1.5KW)
2HP (1.5KW)
Brush Diameter :
280mm
Vacuum Motor :
15HP(11.2KW)
15HP(11.2KW) x 2
Machine Dimension ( D x W x H ) :
2420x2020x2060 (mm)
2420x2250x2060 (mm)
Packing Dimension ( D x W x H ) :
2810x2200x2340 (mm)
3210x2550x2340 (mm)
Net Weight :
3000 KGS
3125 KGS
Gross Weight :
3600 KGS
3775 KGS
