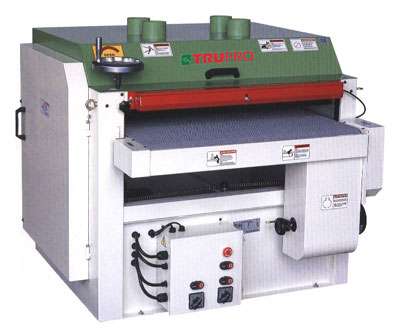

Profile Sander
PFS-9401 / PFS-9402 / PFS-9404
Profile Sander
Standard features: - Three size for your choice: 25", 37", 54".
- Convenient to install and take off sanding strips.
- Cleaning, removing rust and finishing for woods, meal, non-metal and pc board etc.
- Specially designed for high efficiency polishing on irregular surfaces and carving surfaces.
- Adjustable feeding speed for different materials.
Woodworking
- Processing to enhance the wood grain and visually age.
- Polish the surface of wood
- Polishing on any irregular or carved surfaces.
Metalworking
- After sanding there will be lines on the surface that look like scratches.
- Cleaning, removing rust and finishing for metal and non-metal
- Surface scrubbing before electro-plating and coating.
Model PFS-9401 PFS-9402 PFS-9404 Sanding head 1 roller 2 roller 4 roller Max. sanding width 940 mm(37") 940 mm(37") 940 mm(37") Max. sanding thickness 140mm(5-1/2") 140mm(5-1/2") 140mm(5-1/2") Table dimension 940×1015 mm(37"×39.96") 940×1350 mm(37"×53.15") 940×1950 mm(37"×76.77") Sanding wheel diameter 280mm(11") 280mm(11") 280mm(11") or
320 mm(12.6")Speed of sanding wheel 400~1200RPM or
one speed400~1200RPM or
one speed400~1200RPM or
one speedFeeding speed 2.4~7.2M/min(8~24FPM) 2.4~7.2M/min(8~24FPM) 2.4~7.2M/min(8~24FPM) Sanding motor 3HP 3HP + 3HP 5HP + 5HP Feeding motor 1/4HP 1/4HP 1/2HP Up-down motor - - 1/2HP- Overall dimension 41"D × 46"W × 43"H 54"D × 46"W × 43"H 78"D × 46"W × 43"H Packing diameter 45"D × 53"W × 45"H 61"D × 53"W × 45"H 83"D × 53"W × 45"H Net weight 550 lbs 250KGS 948 lbs 430KGS 1322 lbs 600KGS Gross weight 727 lbs 300KGS 1018 lbs 490KGS 1454 lbs 670KGS
