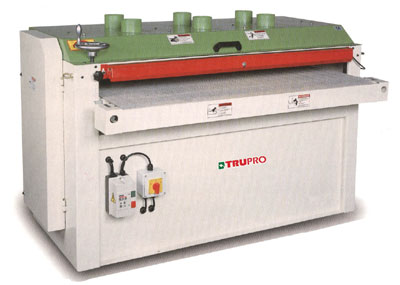

Profile Sander
PFS-13701 / PFS-13702 / PFS-13704
Profile Sander
Standard features: - Three size for your choice: 25", 37", 54".
- Convenient to install and take off sanding strips.
- Cleaning, removing rust and finishing for woods, meal, non-metal and pc board etc.
- Specially designed for high efficiency polishing on irregular surfaces and carving surfaces.
- Adjustable feeding speed for different materials.
Woodworking
- Processing to enhance the wood grain and visually age.
- Polish the surface of wood
- Polishing on any irregular or carved surfaces.
Metalworking
- After sanding there will be lines on the surface that look like scratches.
- Cleaning, removing rust and finishing for metal and non-metal
- Surface scrubbing before electro-plating and coating.

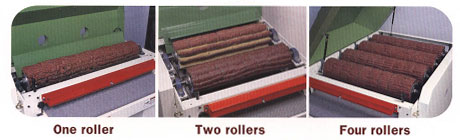

Model PFS-13701 PFS-13702 PFS-13704 Sanding head 1 roller 2 roller 4 roller Max. sanding width 1370 mm(54") 1370 mm(54") 1370 mm(54") Max. sanding thickness 140mm(5-1/2") 140mm(5-1/2") 140mm(5-1/2") Table dimension 1370×1015 mm
(54"×39.96")1370×1350 mm
(54"×53.15")1370×1950 mm
(54"×76.77")Sanding wheel diameter 280mm(11") or
320 mm(12.6")280mm(11") or
320 mm(12.6")280mm(11") or
320 mm(12.6")Speed of sanding wheel 400~1200RPM or
one speed400~1200RPM or
one speed400~1200RPM or
one speedFeeding speed 2.4~7.2M/min(8~24FPM) 2.4~7.2M/min(8~24FPM) 2.4~7.2M/min(8~24FPM) Sanding motor 3HP or 5HP 3HP+3HP or 5HP+5HP 5HP + 5HP Feeding motor 1/2HP 1/2HP 1/2HP Up-down motor - - 1/2HP- Overall dimension 41"D × 63"W × 43"H 54"D × 63"W × 43"H 78"D × 63"W × 43"H Packing diameter 45"D × 67"W × 45"H 61"D × 67"W × 45"H 83"D × 67"W × 45"H Net weight 992 lbs 450KGS 1102 lbs 500KGS 1476 lbs 670KGS Gross weight 1124 lbs 510KGS 1234 lbs 560KGS 1608 lbs 745KGS
