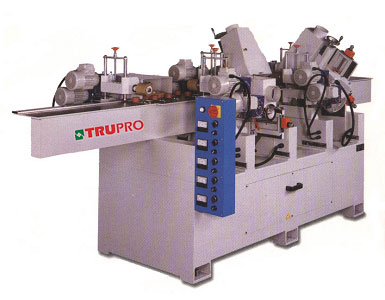

Profile Sander
PFS-W4DAE
4-Side Straight Sanding Machine
Model PFS-W4DAE Min-max working width 15~150 mm Min-max working length 500~1800 mm Min-max working thickness 5~75 mm Horizontal Sanding wheel motor 3HP×4P (Variable speed) Horizontal Sanding wheel size Ø200×15~140 mm Vertical Sanding wheel motor 3HP×4P (Variable speed) Vertical Sanding wheel size Ø200×15~90 mm Horizontal Sanding wheel tilts +45° ~ +90° Vertical Sanding wheel tilts 0° ~ +45° Type of feed Step by step with roller(vertical feed) Conveyor drive motor 1/4HP×4P (applied with 5 sets of reducer) Conveyor drive speed 0~30 M(Variable speed)
