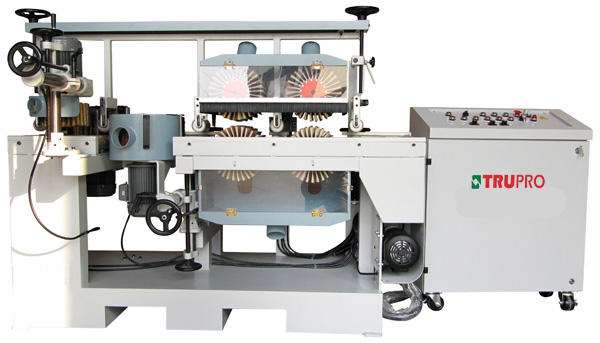

Profile Sander
Features:
l The main frame is fabricated of heavy steel plate and ribbed to minimize vibration and deflection.
l All operating controls are centralized in a convenient control panel.
l It can be used to sand architrave and molding for 3 sides or 4 sides.
l Brush head with sanding strip and wooden brush, it has been designed for easy replacement.
l The location of all the sand head tilt can be adjusted to, more flexible material consistent with the shape of the work, angle type work material specifically for sand bald notched or corner can be adjusted independently of the direction of the upper and lower teeth of sand round and head angle.
MODEL
PFS-300-7SH
Max. working width :
12" (300mm)
Max. working height :
4" (100mm)
Min. work-pieces length :
33" (840mm)
Min. work-pieces thickness :
3/8" (9.5mm)
Feed speed (Variable) :
6~36 FPM (2~12 M/min)
Speed of sanding head
200-1200RPM
Top brush head motor :
2 x 3/4 HP (0.55KW)
Bottom brush head motor
2 x 3/4 HP (0.55KW)
Right brush head motor :
1x1/2 HP(0.37KW)
Left brush head motor :
1x1/2 HP(0.37KW)
Angle brush head motor
1x1/2 HP(0.37KW)
Conveyor motor :
1/4 HP(0.18KW)
Machine Dimension ( D x W x H ) :
224cm x 123cm x 155cm
Packing Dimension ( D x W x H ) :
230cm x 101cm x 164cm
Net weight :
480 KGS
Gross weight :
620 KGS
