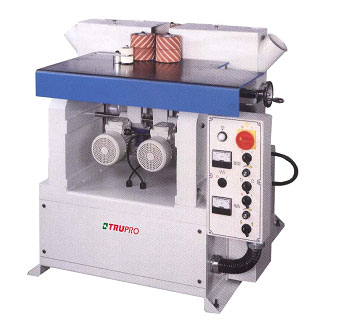

Profile Sander
PFS-506N / 512N
Double Side Curved Sander
FEATURES:
- With infinitely variable speed of sanding belt and feeding, suitable for different stock material and even sealer sanding.
- Choose standard 6”L (PFS-506N) or larger 12”L (PFS-512N) belt drum.
- Patent design for long terms mass production.
- Sanding stocks of chair back. Arm….etc.
- Switch for sanding forward or reversely to get the best effect in workpiece.
Model PFS-506N PFS-512N Sanding belt drive motor 2 HP×2 2 HP×2 Sanding belt speed 0~980 M/min 0~980 M/min Sanding belt size 152×850 mm 305×850 mm Sanding drum size Ø 175×152 mm Ø 175×305 mm Sanding belt oscillation motor 1/8 HP 1/8 HP Sanding belt oscillation range 100 mm 100 mm Feeding motor 1/4 HP×4 1/4 HP×4 Feeding speed 0~28 M/min 0~28 M/min Feeding roller size Ø 100×50 mm Ø 100×50 mm Feeding roller number 8 pcs 12 pcs Working thickness 6~100 mm 6~100 mm Working height 25~150 mm 25~300 mm Working length 400~1500 mm 400~1500 mm Machine size 1050×1100×1000 mm 1050×1100×1150 mm Packing size 1150×1200×1200 mm 1150×1200×1350 mm N.W / G.W 480/530 kgs 510/600 kgs
