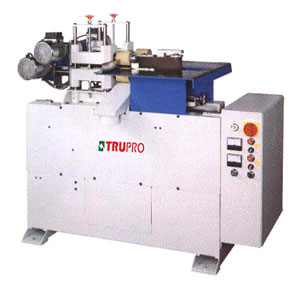

Profile Sander
PFS-506U
Double Side Curved Sander
FEATURES:
- With infinitely variable speed of sanding belt and feeding, suitable for different stock material and even sealer sanding.
- Patent design for long terms mass production.
- Sanding stocks of chair post….etc, pieces thicknesss can be different from the front to end.
- Sanding direction just follow the wood grain so you can get the best sanding results.
- Switch for sanding forward or reversely to get the best effect in workpiece.
Model PFS-506U Sanding belt drive motor 1.5 HP×2 Sanding belt speed 0~565 M/min Sanding belt size 152×635 mm Sanding drum size Ø 100×152 mm Sanding belt oscillation motor AIR SYSTEM Feeding motor 1/4 HP×4 Feeding speed 0~21 M/min Feeding roller size Ø 75×75 mm Feeding roller number 4 pcs Working thickness 15~75 mm Working height 25~75 mm Working length 220~1500 mm Machine size 1350×720×1240 mm Packing size 1450×820×1440 mm N.W / G.W 570/680 kgs
