Profile Sander

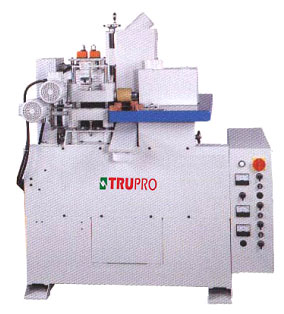

PFS-506U4
4- Side Curved Sander
FEATURES:
- Applied for straight line stock, and curved workpiece, sanding 4-side effectively and rapidly with one pass.
- Suitable for ordinary and sealer sanding.
- Switch for sanding forward or reversely to get the best effect in workpiece.
- With infinitely variable speed of sanding belt and feeding,
Model PFS-506U4 Vertical sanding belt drive motor 1.5 HP×2 Sanding belt speed 0~565 M/min Sanding belt size 152×635 mm×2pcs Sanding drum size Ø 100×150 mm×2pcs Sanding belt oscillation rang 120 mm Horizontal sanding motor 2 HP×4P×2 Sanding belt speed 0~980 M/min Sanding belt size 152×870 mm Sanding drum size Ø 175×150 mm×2pcs Sanding belt oscillation rang 30. 60. 90. 120 mm Feeding motor 1/4 HP×4P×4 Feeding speed 0~22 M/min Feeding roller size Ø 75×75 mm Feeding roller number 4 pcs Working thickness 15~75 mm Working height 25~75 mm Working length 600~1500 mm Machine size 1350×1000×1400 mm Packing size 1450×1100×1600 mm N.W / G.W 860/980 kgs
