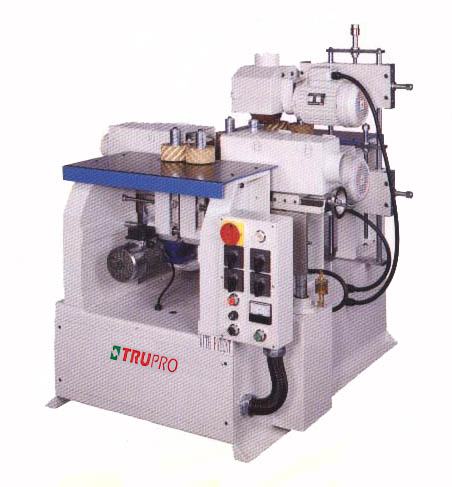

Profile Sander
PFS-506N4
4- Side Curved Sander
FEATURES:
- Applied for straight line stock, sanding 4-side effectively and rapidly with one pass.
- Suitable for ordinary and sealer sanding.
- Switch for sanding forward or reversely to get the best effect in workpiece.
- With infinitely variable speed of sanding belt and feeding,
Model PFS-506N4 Vertical sanding belt drive motor 2 HP×2 Sanding belt speed 0~980 M/min Sanding belt size 152×850mm Sanding drum size Ø 175×152 mm Sanding belt oscillation rang 100 mm Horizontal sanding motor 2 HP×2 Sanding belt speed 0~980 M/min Sanding belt size 152×850 mm Sanding drum size Ø 175×152 mm Sanding belt oscillation rang 30. 60. 90. 120 mm Feeding motor 1/4 HP×5 Feeding speed 0~28 M/min Feeding roller size Ø 100×50 mm Feeding roller number 12 pcs Working thickness 3~100 mm Working height 25~150 mm Working length 400~3000 mm Machine size 1350×1200×1300 mm Packing size 1450×1300×1500 mm N.W / G.W 520/670 kgs
