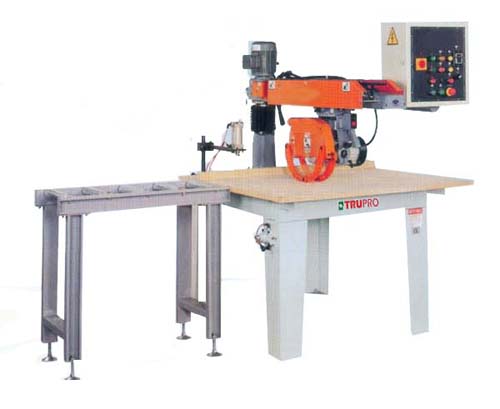

Radial Arm Saw
RAS-969A
Radial Arm Saw-Auto Cutting
l With brake motor.
l Linear rail.
l With roller conveyor 1 set.
l With holdown device 1 set.
l Strok speed control device.
Model
RAS-969A
Motor
5.5HP +0.5 HP
Motor speed
2900rpm(50Hz), 3400rpm(60Hz)
Bearing for rail
Linear rail
Spindle bore
1” Blade diameter
16” Head swiveling
0~180°
Head tilting
0~90°
Max. trimming width
1100mm Max. cross cutting length
900 mm Table area L×W
1300×
1250 mm Machine size
1450×1250×
1760 mm Packing size
1700×1400×
1910 mm N.W. / G.W.
250 / 300 kgs
