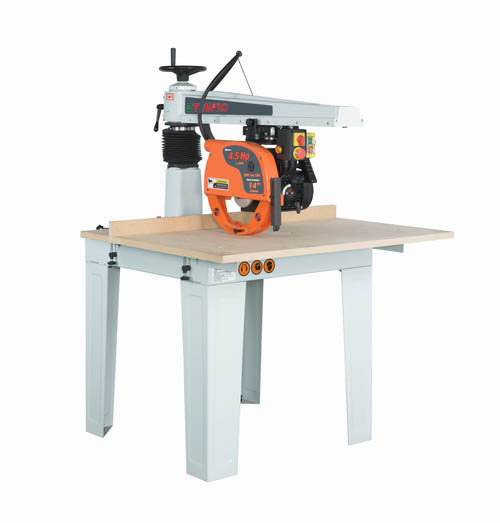

Radial Arm Saw

RAS-999
Radial Arm Saw

  • Safe cutting

    The sawblade is fully guarded, providing maximum safety protection for the operator.

    Extra wide cutting capability

    The arm is one piece casted, assuring deformation free after years of operations. A powerful 4.5 HP motor drives sawblade, which provides extra wide cross cut and rip capacity.

    Performs any angular cutting

    The sawhead can be swiveled 0°~180° degree and tilted  0°~90° degree, permitting for any agular cutting. Angle setting is conveniently and fast accomplished. Sawhead lock securely for stable cutting.




  •



    Model

    RAS-999

    Motor

    2.5 HP / 4.5 HP(Brake motor)

    Motor speed

    2900 RPM

    Bearing for rail

    8 pcs

    Spindle bore

    1” (25.4 mm)

    Blade diameter

    16”

    Head swiveling

    0~180°

    Head tilting

    0~90°

    Thickness of cut

    130mm

    Max. trimming width

    1100 mm

    Max. cross cutting length

    900 mm

    Table area L×W

    1350×1250 mm

    Machine size

    1450×1250×1600 mm

    Packing size

    1150×1550×790 mm

    N.W. / G.W.

    250 / 290 kgs
