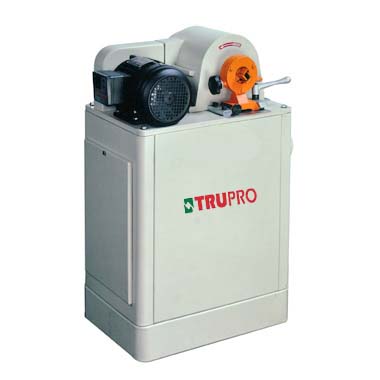

Round Bar Making Machine
RBM-18
Dowel Milling Machine
- Cuts square wood into dowels, with working range from Ø6 to Ø18mm in diameter.
- Ideally suited to make dowels for jointing work in desk, chair and furniture assembly.
- Combine milling and spiral fluting in one pass of feed, that gives a superior method of jointing, more rigid than plan dowels.
- A valuable unit that turns your waste wood sticks into a useful dowels.
- Easy movement from one job site to another.
- Used together with RBM-36H Dowel crosscut and chamfering machine that will be a complete set of perfect mechanism for marking dowels.
- Dust proof switch.
- Patented adjustable stick holding device.
Model
RBM-18
Range of working diameter
Ø6 to Ø18mm
Range of working length
240mm~Unlimited
Drive motor
1HP
Feed speed
6M/min
Machine size
560×440×580mm
Packing size
620×500×750mm
N.W./G.W.
65/90kgs
Cutterhead set
Guide tube
blade
