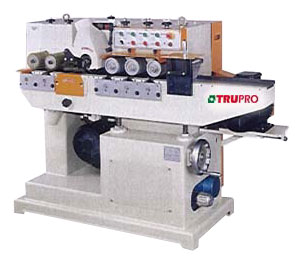

Round Bar Making Machine
RBM-100A2
High Productivity Round Rod Moulder
Machine Feature
- Suitable for cutting wood board into round rods.
- Designed for high production performance.
- Number of round rods per pass is determined by the diameter to be cut, maximum cutting width is 100mm.
- Cutting capacity 2- 30mm in diameter.
- Magnetic switch control.
- Easy adjustment in every way, more convenient than competitors on the market that saves your adjustment time.
Model RBM-100A2 Range of work diameter 2 to 30mm Upper spindle 7 1/2HP Bottom spidle 7 1/2HP Feed motor 1HP Cutter size (outside dia x height x bore) 110x100x 30mm Max. working width 100mm(4") Spindle speed 6500 R.P.M. Feed speed 4-13 m/min Chip chute diameter 100/mm(4") Machine size ( LxWxH ) 1780x850x1250mm Packing size ( LxWxH ) 1900x990x1450mm Net weight 950kg Gross weight 1100kg
