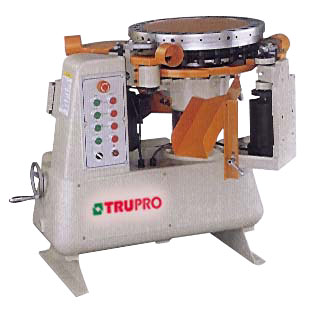

Round Bar Making Machine
RBM-220
High Speed Dowel Cross-Cut and Chamfering Machine
Machine Feature
- The RBM-220 is high production, high speed cross-cut and chamfering machine.
- RBM-220 can auto sift out dowel which length insufficient.
- Each spiral fluting, straight fluting, smooth and glossy plan dowels with dowel cross-cut and chamfering from RBM-220.
- Capacity: about 7,500-15,000 dowels/hour with infinitely variable speed change.
- Cutting length range:30-150mm.
- Accuracy turbine and turbine shaft perform feeding transfer, Iubricating for transfer parts in oil box to increase prolonged the serving life.
- Chamfering cut off and feed drives each with a separate motor.
- The RBM-220 has 2 sets chamfering cutter perform double end chamfering before dowel cross-cut.
- Easy adjustable and save time.
Model RBM-220 Range of work diameter 6 to 18mm Minimum cutting length 30mm Maximum cutting length 150mm Capacity About 7,500-15,000 dowels / hour (infinitely variable) Feed motor 1/2 HP First chamfering motor 1/2 HP Second chamfering motor 1/2 HP Cutting motor 1/2 HP Machine size ( LxWxH ) 1000x700x880mm Packing size ( LxWxH ) 1200x930x1080mm Net weight 340kg Gross weight 420kg
