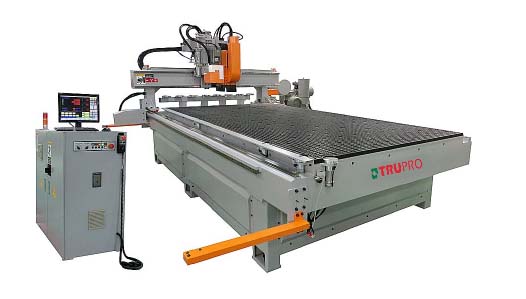

Router & CNC Router

Model

ROU-5101E

Working area

1550×3050mm

Max. working stroke

X axis

3250mm

Y axis

1850mm

Z axis

250mm

Working height

Max. 200mm

Rapid speed

X , Y axis

40M/min

Z axis

10M/min

Spindle

Spindle type

ATC Air cooling (HSD)

Spindle speed

1000-24000rpm

Main power

Spindle power & Q'ty

12HP (9kw)x1

Vacuum pump

15HP (11.25kw)×1

Tool change mode

Table side 8 stations

CNC controller

SYNTEC controller

Tool holder for router bits

ISO-30×4 pc

Collect for router bits, ER-32

f 12 mm×2 , f 16 mm×2

Vacuum zone

1
