Router & CNC Router

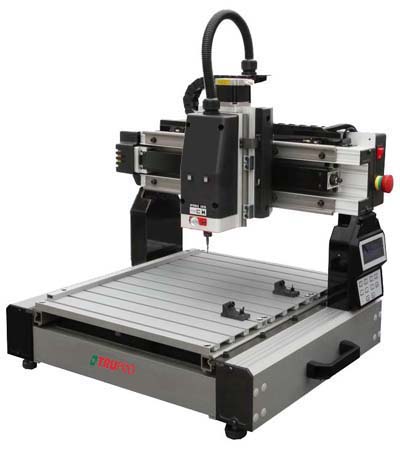

ROU-1318
Carver
- Easy to learn and operate:
- lOnly simple setting on the screen are required.
- lInput carving width, then the length will be fixed automatically.
- lSpindle returns to home position automatically.
- lNo need to design toolpath.
- Convenient user interface:
- lThe supplied i-picture software converts image files and G-code files for carving. (for 152 only)
- lThe i-picture software is compatible from windows 2000 up to windows 7.
- lNo additional software needed for sweep scan carving. Image preview function is available.
- lUSB communication.
Model ROU-1318 Max. workpiece 13”×18”×3”(331×457×76 mm) Max. depth per pass 0.24” (6mm) Max. depth of cut 1” (25.4mm) Bit diameter 1/4” or 6.0mm Spindle motor 150W DC Brushless 15000RPM Axial lead screw diameter --- X.Z lead screw diameter 0.63”(16mm) Y axis Rack & Pinion No. lead screw X,Z:1/1 X, Y, Z rail --- X, Z rail IGUSWX-01-10 Position accuracy 0.001/0.001/0.001”(0.025/0.025/0.025mm) Transmission step motors Max. Torque 17.3kg-cm No. of sensors X,Y,Z:2/2/2 Control panel 4.25” × 2”(108×50.8mm) LCD 3.78”×1.57” (96×40mm) Data port USB 2.0×1 Overall dimensions 25”×22”×21” (630×560×530mm) Net weight 62lbs/28kgs
