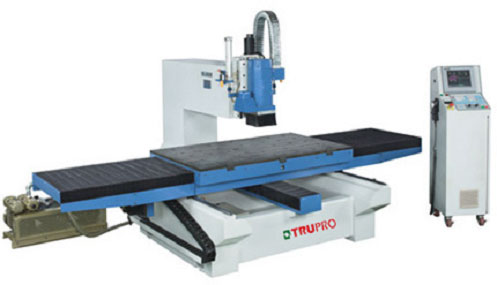

Router & CNC Router

FEATURES:

• PC based CNC control.
• Graphic conversational input function.
• Powerful vacuum suction table.
• Variable spindle speed controlled by frequency inverter.
• Air cylinder counter-balance on z-axis for high machining accuracy.
• Heavy gauge steel frame of machine is tempered for deformation-free.
• Linear guide ways on 3 axes.
• 3 axes traverses are transmitted by high precision ball screws, and driven by servo motors.
• The spindle accommodates router bit and shaper cutter. (ROU-1509 only)
• 18000 RPM high spindle speed.
• Air cooling for spindle.

	Shaper cutter(ROU-1509 only) The spindle not only accommodates various router bits, but also can be fitted with a shaper cutter. Vacuum suction table The table is fitted with a compact board drilled with holes for vacuum suction of workpiece. The positions of vacuum suction holes can be drilled according to customers workpiece types.
	Vacuum pressure meter A vacuum pressure meter is provided at the front of the table for checking vacuum pressure. The machine does not operate until the vacuum pressure reaches the setting value.
	Powerful vacuum generator The vacuum generator provides extra powerful vacuum for the table, that holds workpiece securely during machining.
	Automatic lubricator The automatic lubricator delivers lubrication oil to all slideways, resulting in extremely smooth movements on 3 axes. Lubrication frequency and oil flow may be adjusted as desired.
	Air cylinder counter-balance The spindle head is counter-balanced by an air cylinder which upgrades machining stability and accuracy.
	PC based CNC control Ether net file transfer function. Hand wheel simulation for machining function. Graphic conversational input function. Online diagnoses function for PLC. 500 blocks/sec, programs processing speed. Look ahead function for blocks on the path.
