Router & CNC Router

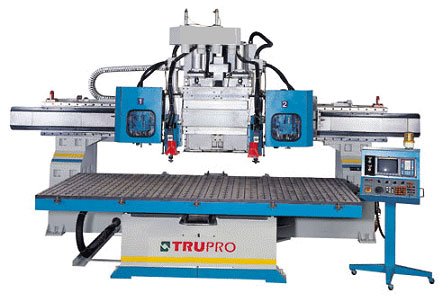

ROU-203ATC(L)
CNC Router
Model ROU-203ATC (L) Spindle No.of Spindles 2 Speed 2,000 ~2,400 rpm Spindle Lub. Grease Table Size 4'x8' 5'x10' Axis Travel Longitudinal (X-Axis) 2,540 mm 3,140 mm Cross (Y-Axis) 1,320 mm 1,620 mm Vertical (Z-Axis) 200 mm 3,140 mm Max. Feed Speed X,Y Axes 24 M/min Z Axis 9 M/min Tools Tool Holder Type ISO-30 No. of Tools per Spindle 6 Motor Main Spindle [ATC Head(s)] 10.5 HP x 2 Vacuum 7.5 HP Air Pressure 6 Kg/cm2 Dimensions Floor Space Required (mm) 5,200 x 3,000 6,000 x 3,700 Height (mm) 2,850 2,850 Weight (Kgs) 7,000 9,000 CNC System Fanuc or Mitsubishi Fanuc or Mitsubishi
