Router & CNC Router

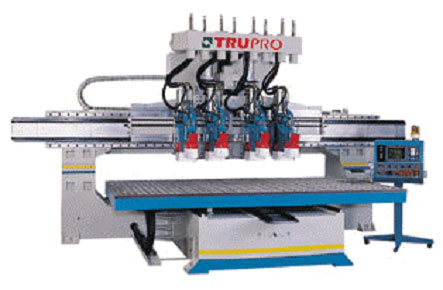

ROU-403J-BP
CNC Router
Model ROU-403J-PB ROU-603J-PB Spindle No.of Spindles 8 12 Speed 2,000 ~ 18,500 rpm 2,000 ~ 18,500 rpm Distance between Spindles 240 ~ 700 mm 240 ~ 430 mm Spindle Lub. Oil Mist Oil Mist Table Size 4'x8' 5'x10' 4'x8' 5'x10' Axis Travel Longitudinal (X-Axis) 2,540 mm 3,140 mm 2,540 mm 3,140 mm Cross (Y-Axis) 1,320 mm 1,620 mm 1,320 mm 1,620 mm Vertical (Z-Axis) 200 mm 3,140 mm 200 mm 3,140 mm Max. Feed Speed X,Y Axes 24 M/min 24 M/min Z Axis 9 M/min 9 M/min Tools Router Bit Shank 12 mm, 16 mm (Also in Inches) 12 mm, 16 mm (Also in Inches) Shaper Cutter Diameter 30 mm(Inner)
230 mm(Outer)30 mm(Inner)
230 mm(Outer)Motor Main Spindle 10 HP x 4 10 HP x 6 Piggy Back 3 HP x 4 3 HP x 6 Vacuum 7.5 HP 7.5 HP Air Pressure 6 Kg/cm2 6 Kg/cm2 Dimensions Floor Space Required (mm) 5,200 x 3,300 6,000 x 4,000 5,200 x 3,300 6,000 x 4,000 Height (mm) 2,850 2,850 2,850 2,850 Weight (Kgs) 8,200 9,000 8,700 10,200 CNC System Fanuc or Mitsubishi Fanuc or Mitsubishi Fanuc or Mitsubishi
