Router & CNC Router

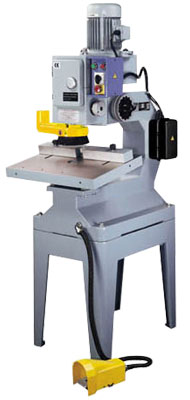

ROU-550
Router
  • Model ROU-550
    Throat clearance 550mm
    Vertical stroke of spindle 90mm
    Vertical adjustment of head 80mm
    Table dimensions 410x610mm
    Table dimensions with extensions 610x1010mm
    Table tilting 0~35degree
    Adjustable depth stops 6
    Spindle speed 10000 / 20000 rpm
    Motor 2 / 3 hp
    Collets & guide pins 6, 9, 12 / 1/4, 3/8, 1/2 mm / inch
    Overall dimensions 610x940x1860mm
    Packing dimensions 970x610x1350mm
    Net weight 280kg
    Gross weight 340kg
