Router & CNC Router

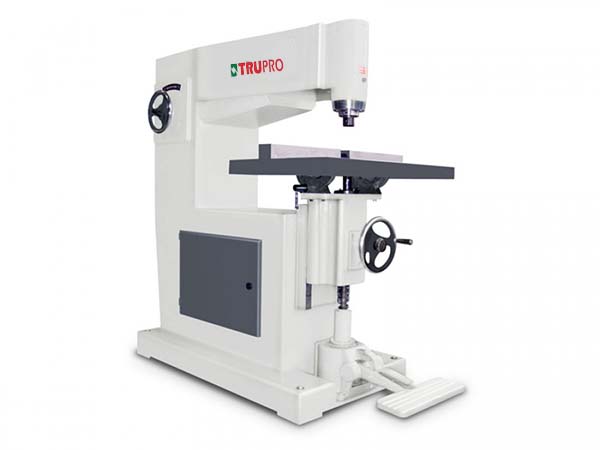

ROU-650
Router
  • Model ROU-650
    Throat clearance 650mm
    Vertical stroke of spindle 92mm
    Vertical adjustment of head 185mm
    Table dimensions 700x900mm
    Max. distance between table & spindle 280mm
    Table tilting 0~35degree
    Adjustable depth stops 3
    Spindle speed 10000 / 20000 rpm
    Motor 5 / 7.5 hp
    Collets & guide pins 6, 8, 9, 12, 16 / 1/4, 5/16, 3/8, 1/2, 5/8 mm / inch
    Overall dimensions 900x1400x1700mm
    Packing dimensions 1400x740x1870mm
    Net weight 660kg
    Gross weight 860kg
