Router & CNC Router

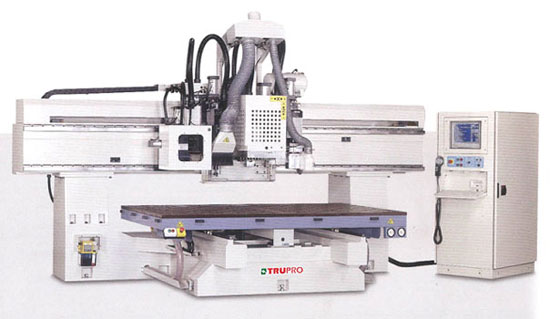

ROU-360 / ROU-360 plus
Fixed-portal CNC WORKING CENTER (Flexibility and versatility in the machining of medium and large size workpieces.)
FEATURES:
- Exceptionally rigid mechanical structure with stationary gantry and moving table guarantees maximum machining precision.
- The design of fixed ball screws with rotary lead nuts ensures vibration-free movements even during high acceleration and deceleration.
MODEL ROU-360 Dimensions of working table 2450 x 1300 mm X-,Y-,Z-axis stravel 2500 / 1300 / 250 mm X-,Y-,Z-axis max. positioning speed 45 / 45 / 15 m/min Machining unit :
ISO30 ATC routing spindleMotor : 7.5 ~ 15 hp
Rotation speed : 1200 ~ 18000 rpm
Capacity of tool magazine : 8 pcsCapacity of vacuum pump 250 M3/hr (50 Hz, 7.5hp) Machine dimensions : Floor area : 3680 x 2510 mm
Height : 2300 mm
Weight : 4000kgsMODEL ROU-360 plus Dimensions of working table 2450 x 1300 mm X-,Y-,Z-axis stravel 3000 / 1300 / 250 mm X-,Y-,Z-axis max. positioning speed 45 / 45 / 15 m/min Machining unit : ISO30 ATC
routing spindleMotor : 7.5 ~ 15 hp
Rotation speed : 1200 ~ 1800 rpm
Capacity of tool magazine : 8 pcs3-HP boring head Rotation speed : 5100 rpm
Vertical spindles : 5
Horizontal spindles : 45-HP 0°/ 90°
saw unitRotation speed : 5500 rpm
Max. saw blade diameter : 250 mmCapacity of vacuum pump 250 M3/hr (50 Hz, 7.5hp) Machine dimensions : Floor area :5000 x 2510 mm
Height : 2560 mm
Weight : 5000kgs
