Router & CNC Router

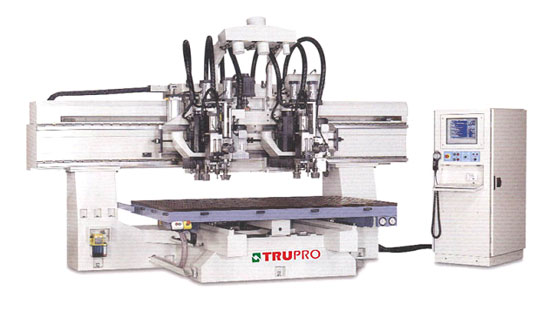

ROU-360 / 4
Fixed-portal CNC WORKING CENTER (Flexibility and versatility in the machining of medium and large size workpieces.)

  • FEATURES:

    • Exceptionally rigid mechanical structure with stationary gantry and moving table guarantees maximum machining precision.
    • The design of fixed ball screws with rotary lead nuts ensures vibration-free movements even during high acceleration and deceleration.
  • MODEL ROU-360 / 4
    Dimensions of working table 2450 x 1300 mm
    X-,Y-,Z-axis stravel 3300 / 1300 / 250 mm
    X-,Y-,Z-axis max. positioning speed 45 / 45 / 15 m/min
    Machining unit : ISO30 ATC
    routing spindle    		 Motor : 7.5 ~ 15 hp×2
    Rotation speed : 1200 ~ 1800 rpm
    Capacity of tool magazine : 8 pcs×2
    3-HP boring head Rotation speed : 5100 rpm
    Vertical spindles : 5
    Horizontal spindles : 4
    5-HP 0°/ 90°
    saw unit    		 Rotation speed : 5500 rpm
    Max. saw blade diameter : 250 mm
    Capacity of vacuum pump 250 M3/hr (50 Hz, 7.5hp)
    Machine dimensions : Floor area :5000 x 2510 mm
    Height : 2560 mm
    Weight : 6000kgs
