Router & CNC Router

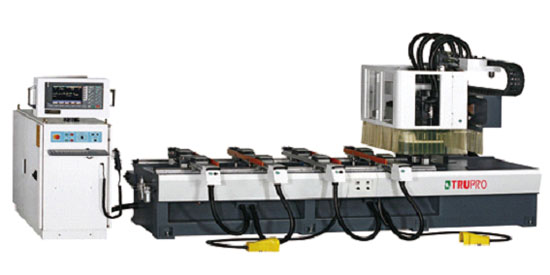

ROU-330EL
CNC WORKING CENTER
model ROU-330EL Working area X/Y-axis(mm) 2600/925 Z-axis stroke(mm) 250 X/Y/Z-axis max. positioning speed(M/min) 65/60/20 Routing spindle power(HP) 7.5/10/15 Max. rotation speed(rpm) 20000/24000 Tool interface manual-collect ER32/ISO30/HSKF-63 Boring unit power(HP) 3 Vertical spindles(no.) 7/10 Horizontal spindles(no.) 2/4 Built-in saw dia. (mm) 120 Machine dimensions Floor area(m) 4.9x3.0 Heigh(m) 2.4 Weight(kg) 3000
