Router & CNC Router

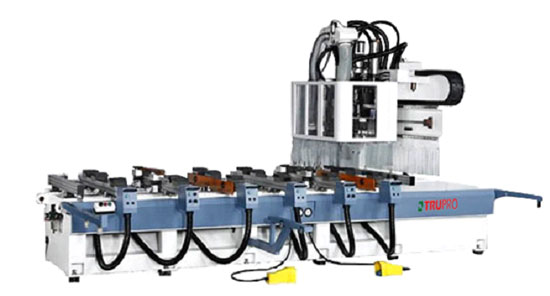

ROU-330S
CNC WORKING CENTER
  • model ROU-330S
    Working area X/Y-axis(mm) 2600/1300
    Z-axis stroke(mm) 250
    X/Y/Z-axis max. positioning speed(M/min) 65/60/20
    Routing spindle power(HP) 7.5/10/15
    Max. rotation speed(rpm) 20000/24000
    Tool interface manual-collect ER32/ISO30/HSKF-63
    Boring unit power(HP) 3
    Vertical spindles(no.) 10/16/19
    Horizontal spindles(no.) 4/6/6
    Built-in saw dia. (mm) 120
    Machine dimensions
    Floor area(m) 4.9x3.8
    Heigh(m) 2.4
    Weight(kg) 4200
