Router & CNC Router

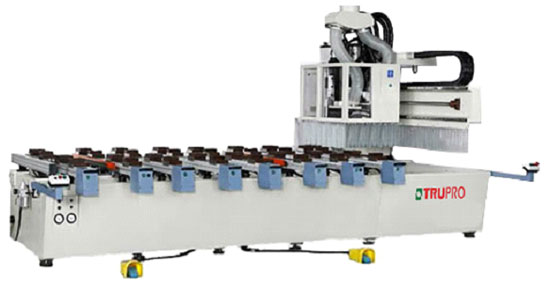

ROU-330L
CNC WORKING CENTER
model ROU-330L Working area X/Y-axis(mm) 3200/1300 Z-axis stroke(mm) 250 X/Y/Z-axis max. positioning speed(M/min) 85/60/20 Routing spindle power(HP) 7.5/10/15 Max. rotation speed(rpm) 20000/24000 Tool interface manual-collect ER32/ISO30/HSKF-63 Boring unit power(HP) 3 Vertical spindles(no.) 10/16/19 Horizontal spindles(no.) 4/6/6 Built-in saw dia. (mm) 120 Machine dimensions Floor area(m) 5.8x3.8 Heigh(m) 2.4 Weight(kg) 4200
