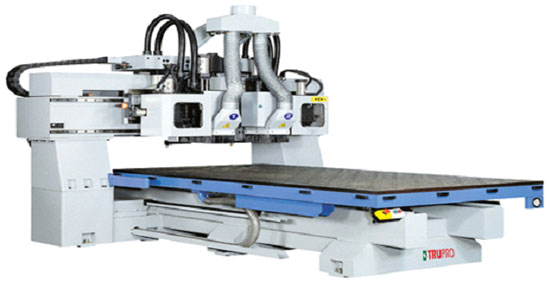

ROU-5010/2
CNC WORKING CENTER
  • model ROU-5010/2
    Dimension of working table 3000x1500mm
    X-,Y-,Z-axis travel 3000/1500/250mm
    X-,Y-,Z-max. positioning speed 45/45/15m/min
    Machining unit ISO30 routing spindle
    Motor: 7.5/10/15hpx2
    Max. rotation speed: 20000rpm
    Capacity of tool magazine: 8 pcs x2
    Capacity of vacuum pump 250m3/hr
    Machine dimensions Floor area: 3.1x4.3m
    Heigh: 2.6m
    Weight: 6000kgs
