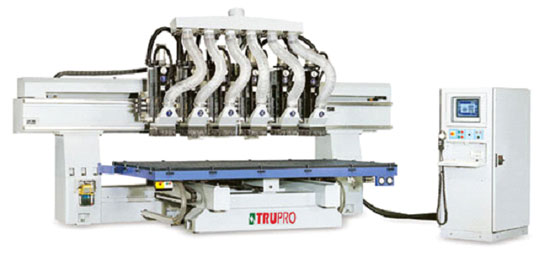

ROU-1050/6

CNC WORKING CENTER

model	ROU-1050/6
Dimension of working table	3000x1500mm
X-,Y-,Z-axis travel	3500/1600/250mm
X-,Y-,Z-max. positioning speed	45/45/15m/min
Machining unit	Manual-collect routing spindle Motor: 7.5/10/15hpx6 Max. rotation speed: 20000rpm
Capacity of vacuum pump	250m3/hr
Machine dimensions	Floor area: 5.1x3.1m Heigh: 2.6m Weight: 7800kgs
