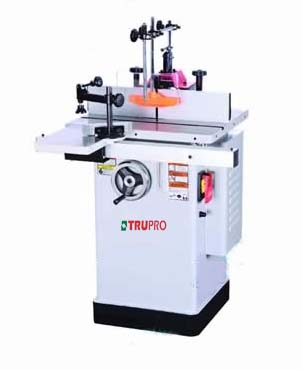

Shaper-Spindle
806-0404
Shaper With Sliding Table
l Powerful 1.5HP motors delivers dependable power, even heavy duty jobs.
l Staring pin for irregular shaping.
l Adjustable work hold downs mounted to fence secure your workpiece while shaping.
l Spindle lock allows quick, easy cutter set-up and removal.
l Sliding table allows heavy duty works.
l Large handwheel is conveniently located for fast, easy and accurate spindle height adjustment.
Model
806-0404
Motor
1.5 HP
Cutting capacity
30mm
Spindle speed
5800rpm/8300rpm
Spindle travel
75mm
Table(L×W)
610×534mm
Sliding Table(L×W)
320×220mm
Fence Size
300×120×20mm
Packing information
Packing dimension: 670×575×1100mm
Gross weight: 160kg
