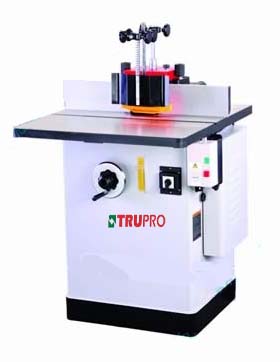

Shaper-Spindle
806-0401F
Production Shaper
l Powerful 3HP motors delivers smooth, consistent power on even heavy duty jobs.
l Staring pin for irregular shaping.
lTwo-speed step pulley drive lets you select the best speed and torque for different cutter diameters.
l Independent left and right fence for easy and accurate fence adjustment.
l Spindle lock allows quick, easy cutter set-up and removal.
l 30mm and 19mm interchangeable spindle, 1/2” and 1/4” router bit collets for use with shaper cutterhead and router bits.
Model
806-0401F
Motor
3 HP
Cutting capacity
30mm/19mm
Spindle speed
5300rpm/8300rpm
Spindle travel
90mm
Table(L×W)
716×556mm
Fence Size
300×120×20mm
Packing information
Packing dimension: 800×680×1120mm
Gross weight: 216kg
