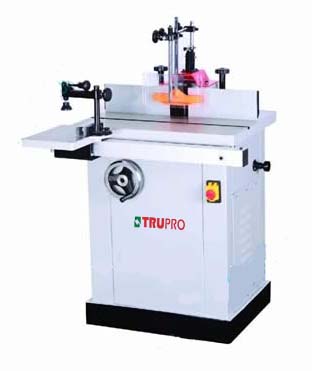

Shaper-Spindle
806-0401
Industrial Shaper
lPowerful 3HP motors delivers smooth, consistent power on even heavy duty jobs.
l Staring pin for irregular shaping.
l Two-speed step pulley drive lets you select the best speed and torque for different cutter diameters.
lIndependent left and right fence for easy and accurate fence adjustment.
lSpindle lock allows quick, easy cutter set-up and removal.
l30mm interchangeable spindle, 1/2” and 1/4” router bit collets for use with shaper cutterhead and router bits.
Model
806-0401
Motor
3 HP
Cutting capacity
30mm
Spindle speed
3500rpm/7000rpm
Spindle travel
90mm
Table(L×W)
695×555mm
Sliding Table(L×W)
320×220mm
Fence Size
300×120×20mm
Packing information
Packing dimension: 760×610×1100mm
Gross weight: 216kg
