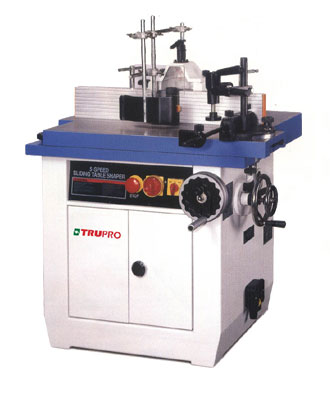

Shaper-Spindle
SM-511M / MS / T / TS
Spindle Moulder
Model SM-511M / MS / T / TS Diamension of working table 700 × 900 mm Working table height 900 mm Spindle vertical stroke 180 mm Max. tool diameter below table top 180 mm above table top 225 mm Spindle speed 3000 / 4000 / 6000 / 8000 / 10000 rpm Rotation Forward and reverse Motor power 3 / 5.5 HP Sliding table dimension(MS/TS) 900 × 230 mm Working stroke of the slide(MS/TS) 840 mm Spindle tilting (T/TS) -5 ~ +45° Overall size 850 × 900 × 1170 mm Packing size 1090 × 900 × 1040 mm Net weight 310 kgs Gross weight 370 kgs
