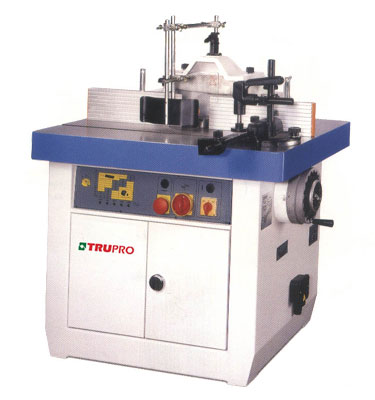

Shaper-Spindle

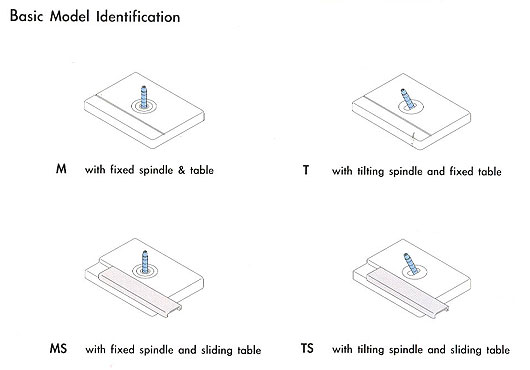

SM-512M / MS / T / TS
Spindle Moulder
Model SM-512M / MS / T / TS Diamension of working table 800 × 1000 mm Working table height 900 mm Spindle vertical stroke 140 mm Max. tool diameter below table top 210 mm above table top 335 mm Spindle speed 3000 / 4000 / 6000 / 8000 / 10000 rpm Rotation Forward and reverse Motor power 5.5 / 7.5 HP Sliding table dimension(MS/TS/MSL/TSL) 1000 × 260 mm Working stroke of the slide(MS/TS/MSL/TSL) 940 mm Spindle tilting -5 ~ +45° Overall size 1230 × 1000 × 1340 mm Packing size 1150 × 940 × 1040 mm Net weight 410 kgs Gross weight 530 kgs
