Shaper-Spindle

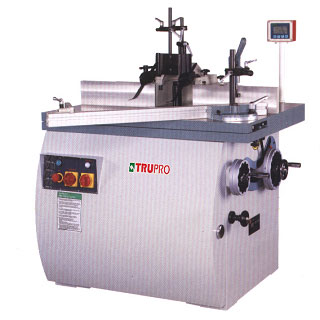

SM-635T / SM-635TS
Spindle Shaper
- INTERCHANGEABLE SPINDLES: Choice of 3 spindle diameters- 3/4", 1", 1-1/4" or choice of metric sizes- 19mm, 25.4mm, 30mm. Spindle has MK5 taper to ensure precision fitting for the machines usable life, and guaranteed tolerance to 0.0008".
- QUICK CHANGE SPINDLE SPEEDS: The spindle is driven by four-speed pulley for spindle speeds of 3000, 4500, 7500 and 10000 RPM. Change of speed is quickly and easily accomplished by simply loosening a lock lever, and shifting the belt to the required spindle speed.
- REVERSIBLE SPINDLE ROTATION: The spindle is reversible to ensure safe rotation in clockwise or counter-clockwise direction as well as providing the ability of climb cutting panels.
- SPINDLE RAISING: The spindle is raised or lowered by a precision graduated handwheel, providing 1mm elevation per full revolution of the handwheel. Quick clamp lever positively holds spindle at a set height for guarantee of repitition.
- ELECTRONIC SPINDLE BRAKE: The electronic spindle brake provides instant stop of the running stop.
- TABLE INSERTS: The spindle is fitted with 2 insert rings (6-3/8" & 8-5/8") permitting for use of a wide variety of shaper cutters and spindle speeds.
- FENCE: The fence assembly is attached with a 5" diameter outlet dust hood. The fence halves can be precision adjusted by micrometric adjustment knob with 0.008" graduation.
- TABLE: The massive table is made from high quality cast iron, rib reinforced, and temper heat treated for maximum strength and wear resistance. Table surface is precision ground by milling and polished to 0.006" guarantee.
- ROUTING OPERATION: The MK5 taper on the spindle accepts a router collet system, providing maximum flexibility all in one shaping and routing machine.
Model SM-635T SM-635TS Spindle Dia. 3/4" , 1" , 1-1/4" Spindle Speed 3000 / 4500 / 7500 / 10000 rpm. Taper of Spindle MK5 Sindle Motor 5 HP (7.5 HP opt.) Spindle Travel 5" (130mm) Spindle capacity under nut 3-1/4" , 3-3/4" , 4-1/2" (3/4" , 1" , 1-1/4" spindle) Tilting Angle 45° backward, 5° frontward Max. Table Insert Diameter 8-5/8" (220mm) Table Size 41-3/8" x 31-1/8" (1050 x 800mm) Table Height 35-1/2" (900mm) Sliding Table Size 1050 x 250mm Sliding Table Travel 38" (970mm) Fence Size 4-15/16" x 35-1/2" (125 x 900mm) N.W. 851 lbs(387kgs) 906 lbs(412kgs) G.W. 900 lbs(409kgs) 994 lbs(452kgs) Packing Dimensions 48"(L) x 46"(W) x 50"(H)
