Shaper-Spindle

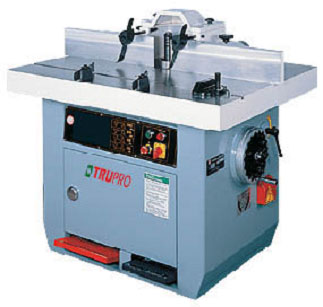

SM-735M
Spindle Shaper
- INTERCHANGEABLE SPINDLES: Choice of 4 spindle diameters- 1", 1-1/4", 1-3/8", 1-1/2" or choice of metric sizes- 25mm, 30mm, 35mm, 40mm. Spindle has MK5 taper to ensure precision fitting and allow quick changeover of another spindle.
- QUICK CHANGE SPINDLE SPEEDS: The spindle is driven by four-speed pulley for spindle speeds of 3000, 4500, 7500 and 10000 RPM. Change of speed is quickly and easily accomplished by simply loosening a lock lever, and shifting the complete assembly.
- FOOT SPINDLE LOCK: The spindle is foot treadle locked for convenient cutter and spindle change.
- FOOT SPINDLE BRAKE: Treadle plate provides instant stop of the running spindle after power has been turned off.
- REVERSIBLE SPINDLE ROTATION: The spindle is reversible to ensure safe rotation in clockwise or counter-clockwise direction.
- ROUTING OPERTION: Optional collets can be supplied to enable the shaper do a routing application. Provides excellent flexibility all in one shaping system.
- TILTING SPINDLE: The tilting spindle provides angle cutting from -5° ~ 90° ~+45°. Spindle tilting handwheel is located at front within easy reach. A tilt scale is attached for accurate angle setting. A locking handle anchors spindle into fixed angled position.
- SPINDLE RAISING: The spindle is raised or lowered by a graduated handwheel, providing 0.04" elevation per full revolution of the handwheel. Quick clamp lever positively holds spindle at a required setting.
- TABLE INSERTS: The spindle is fitted with 5 insert rings permitting for use of a wide variety of shaper cutters. Maximum insert opening diameter is 13-1/4", allowing use of insert cutterheads.
- FENCE: Precision machined fence provides the accuracy demanded in complex shaping applications. The fences are supported by a massive cast iron body and integrated with a 5" cast iron dust shroud.
- TABLE: The massive table is made from high quality cast iron (FC-25 grade), rib reinforced, and temper heat treated for maximum strength and wear resistance. Table surface is precision ground by milling and polished to 0.05mm flatness.
Model SM-735M Spindle Diameter 1", 1-1/4", 1-3/8", 1-1/2" (25.4, 30, 35, 40mm) Interchangeable Spindle Travel 7" (180mm) Tilting Angle - Spindle Speeds 3000 / 4500 / 7500 / 10000 rpm. (4 Speeds) Spindle Taper MK5 Table Size 36-1/2" x 48" (930 x 1220mm) Sliding Table Size N/A Sliding Table Stroke N/A Table Insert Opening Diameters Ø3-15/16" , 6-3/4" , 8-1/4" , 10-1/4" , 13-1/4"
(100, 170, 210, 260, 336mm)Sindel Capacity Under Nut 4" , 5-1/2" , 5-1/2" , 5-1/2"
(1" , 1-1/4" , 1-1/2" , 1-3/8" Spindle)Table Height 35-1/2" (900mm) Fence Size 23-1/2" x 5-3/4" (600 x 146mm) Motor Horsepower 7.5 HP (10HP opt.) N.W. 1430 lbs(650kgs) G.W. 1650 lbs(750kgs) Packing Dimensions 53"(L) x 42"(W) x 51"(H)
