Shaper-Spindle
SM-800M

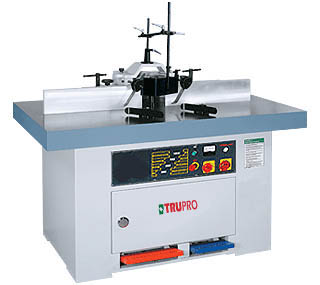

Spindle Shaper
Model SM-800M Spindle Diameter 1" , 1-1/4" , 1-3/8" , 1-1/2" , (25.4, 30, 35, 40mm) Interchangeable Spindle Travel 6-5/8" (170 mm) Spindle Speeds - Spindle Taper 3000/4500/7500/10000 RPM (4 Speeds) Spindle Taper MK5 Table Size 36-1/2" x 61" (920 mm x 1550 mm) Sliding table size - Sliding table stroke - Table Insert Opening diameters 3-15/16" , 6-3/4" , 8-1/4" , 10-1/4" , 13-1/4"
(100,170,210,260,336mm)Spindle capacity under nut 4" , 5-1/2" , 5-1/2" , 5-1/2"
(1" , 1-1/4" , 1-1/2" , 1-3/8" Spindle)Table Height 35-1/2" Fence Size 1PC=23-1/2" x 5-3/4" (600 x 146 mm) x 2 Motor Horsepower 10 HP (15 HP Opt.) N.W. 720 kgs G.W. 820 kgs Packing Dimensions 65"(L) x 42"(W) x 52"(H)
