Shaper-Spindle

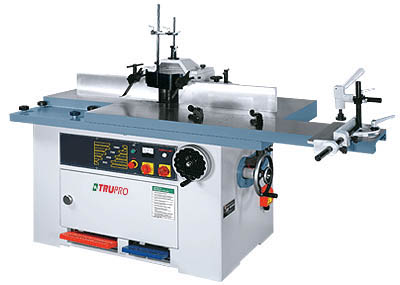

SM-800TS
Spindle Shaper
  • Model SM-800TS
    Spindle Diameter 1" , 1-1/4" , 1-3/8" , 1-1/2" (25.4, 30, 35, 40mm) Interchangeable
    Spindle Travel 6-5/8" (170 mm)
    Tilting angle -5° ~ 90° ~ +45°
    Spindle Speeds 3000/4500/7500/10000 RPM (4 Speeds)
    Spindle Taper MK5
    Table Size 36-1/2" x 61" (920 mm x 1550 mm)
    Sliding table size 13" x 61"
    Sliding table stroke 54"
    Table Insert Opening diameters 3-15/16" , 6-3/4" , 8-1/4" , 10-1/4" , 13-1/4"
    (100,170,210,260,336mm)
    Spindle capacity under nut 4" , 5-1/2" , 5-1/2" , 5-1/2" (1" , 1-1/4" , 1-1/2" , 1-3/8" Spindle)
    Table Height 35-1/2"
    Fence Size 1PC=23-1/2" x 5-3/4" (600 x 146 mm) x 2
    Motor Horsepower 10 HP (15 HP Opt.)
    N.W. 835 kgs
    G.W. 935 kgs
    Packing Dimensions 65"(L) x 52"(W) x 52"(H)
