Shaper-Spindle

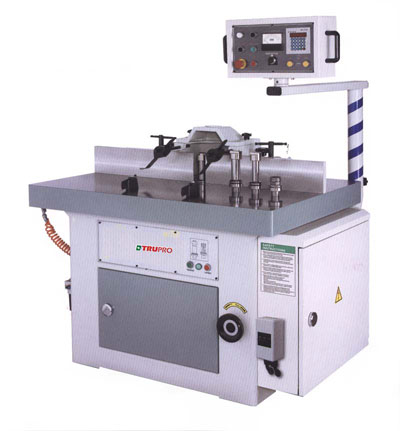

SM-770HSK
Spindle Shaper
- HSK high speed spindle
- Tool holder knocking device
- Variable spindle speed controlled by frequency inverter
- Digital position control (optional)
- 10HP/15HP (optional) spindle motor
- Table size: 51" × 38"
Model SM-770HSK Spindle numbers : Single Spindle diameter : 1-1/4", 1-3/8", 1-1/2" (30,35,40mm)
InterchangeableSpindle speed : 3000~12000RPM Spindle travel : 130mm Spindle capacity under nut : 4", 5-1/2", 5-1/2", 5-1/2"
(1", 1-1/4", 1-1/2", 1-3/8" spindle)Spindle taper : HSK-63F Table size : 51"×38" Height from floor to table : 900mm Motor horsepower : 10HP/15HP(option) Frequency inverter : 10HP/15HP(option) Fence size : 610×146mm N.W : 762kgs G.W : 812kgs Packing dimensions : 1490×1180×1860mm
