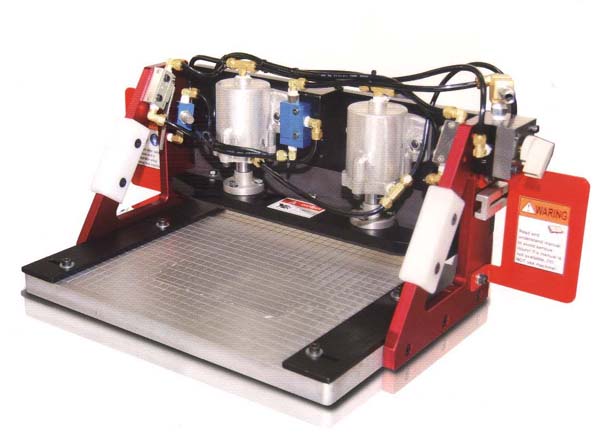

Shaper-Spindle
Features:
l This panel crafter secures the rail with pneumatic clamp and glides on an ultra thin cushion of air making the operating effortless.
l When you are working on a table saw, band saw, and shaper, the panel crafter take you to a whole new level of safety and accuracy.
l Crafted from finest density aircraft aluminum and new handle for tenon thickness 3-1/2”.
l A huge advantage when cutting finger joints, tenon and glue joints and keep hands away from cutters.
l A pneumatic air clamp for holding projects in place, and also locking table for multiple cuts.
l Engineered to fit in standard 3/8”×3/4” miter slots.
l Panel crafter offers up to 2” (53mm) horizontal and nearly unlimited vertical holding capacity.
l Custom templates made to your specifications at an affordable cost.
l Double switch valves working system can help your hands away in case of any clamping dangerous.
l It only needs to connect the air compressor without any electric power required.
.jpg)

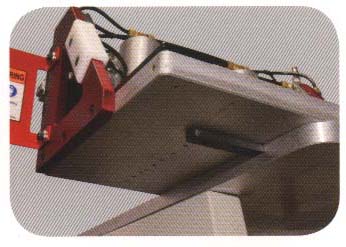

Sliding
Fabricating the slide under the base, that can fit the T-slot of the working table to make panel crafter go straight on the working table.
.jpg)

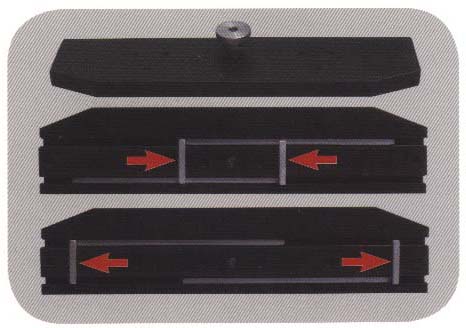

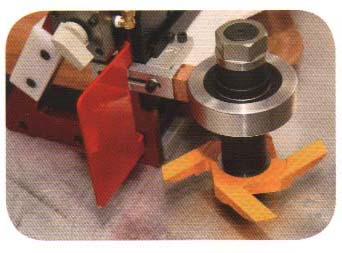

Before function the panel crafter, should touch the spindle template by the pad for stop the spindle template turning and then start to using.
.jpg)
Double switch of clamping
The panel crafter with double switch for clamping. It must be using the double switch before function the panel crafter.
.jpg)

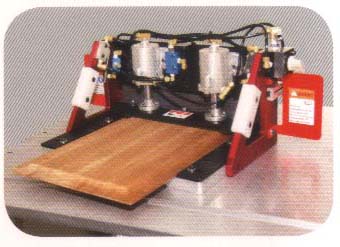

Material clamp for CS-24 only. (Optional)
Specifications:
Model
CS-11
CS-16
CS-24
Max. width material clamping
292mm(11-1/2”)
406mm(16”)
609mm(24”)
Max. thickness for clamping
53mm(2”)
Air pressure required
5kg/cm2
Table size (W×L)
292.1×300mm
11-1/2”×11-3/4”
406.4×300mm
16”×11-3/4”
609.6×300mm
24”×11-3/4”
N.W. / G.W
13.5/15.8kgs
16.7/19.1kgs
22.7/23.6kgs
Packing
460×370×300mm
580×370×300mm
790×370×300mm
Optional accessory:
Model
CS-11
CS-16
CS-24
Material clamp
N/A
N/A
Yes
Male template holder
Yes
Yes
Yes
Template size
3”,4”,5”,6”,7”(5sets)
3”~16”(14 sets)
3”~36”(34sets)
