Table Saw

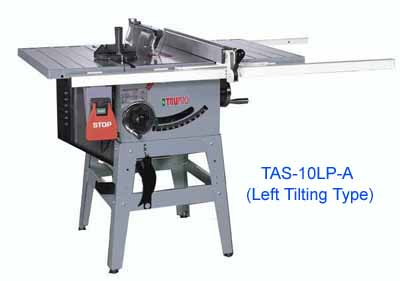

TAS-10LP-A
10" Tilting Arbor Table Saw
- Ruggedly constructed saw carriage for maximum cutting stability.
- With stable quality and minimum operation vibration.
- Heavy, precision machined trunnion ensure accurate saw tilting from 0°~45°.
- The blade guard and riving knife can perform vertical adjustment with the sawblade.
- The blade guard can be dismount easily to facilitate maintenance purpose.
- The saw blade tilting and raising action are conveniently controlled by the hand wheels.

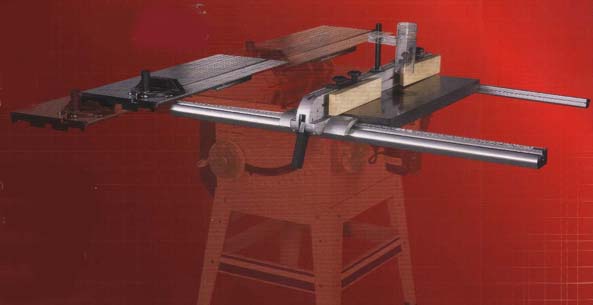

Optional: sliding table
.jpg)
We specialize in the development of variety of table saws for woodworking applications. If you have any question or request, just feel free to contact TRUPRO-TEC.
Model
TAS-10LP-A
Motor Speed
4200 rpm
Diameter of Arbor
5/8"(16mm)
Diameter of Saw Blade
10"(254mm)
Max. Depth of Cut
3-1/16"(78mm)
Max. Depth of cut at 45
2 1/16"(53mm)
Distance in front of blade
10-1/2”(266mm)
Table
686(L)x512(W)mm
Extension wing
686(L)x304(W)mm
Motor
1.5HP
N.W
115 kgs
G.W
140 kgs
