Table Saw
l Ruggedly constructed saw carriage for maximum cutting stability.
l With stable quality and minimum operation vibration.
l Heavy, precision machined trunnion ensure accurate saw tilting from 0°~45°.
l The blade guard and riving knife can perform vertical adjustment with the sawblade.
l The blade guard can be dismount easily to facilitate maintenance purpose.
l The saw blade tilting and raising action are conveniently controlled by the hand wheels.
Model

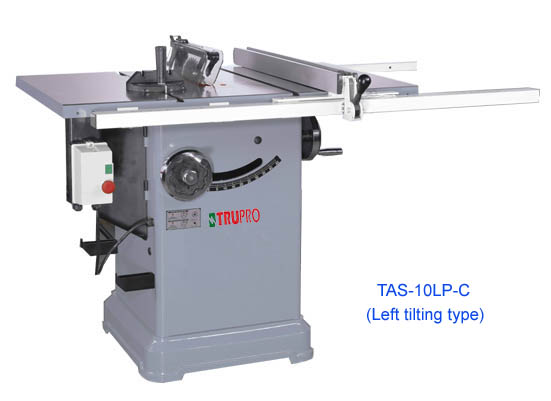

TAS-10LP-C
Motor Speed
4200 rpm
Diameter of Arbor
5/8"(16mm)
Diameter of Saw Blade
10"(254mm)
Max. Depth of Cut
3-1/16"(78mm)
Max. Depth of cut at 45
2 1/16"(53mm)
Distance in front of blade
10-1/2”(266mm)
Table
686(L)x512(W)mm
Extension wing
686(L)x304(W)mm
Motor
3HP
N.W
185 kgs
G.W
218 kgs
Packing dimensions
68×89×129cm
Rail
154×9×9cm
