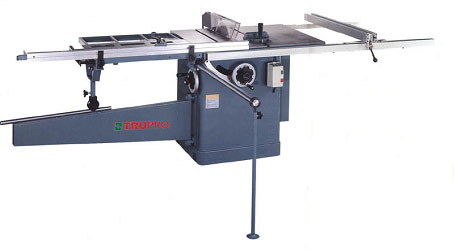

Table Saw
TAS-10L
Tilting Arbor Saw
- Heavy duty cast iron table is precision ground for accuracy.
- Anti-kickback safety guard.
- Ruggedly constructed machine frame provides maximum stability.
- Choice of two types of sliding table 3'×6' or 4'×8'(optional).
- Dual English/Metric scale guide rail.
- Extra long guide rail.
- Overload protected magnetic switch.
Model TAS-10L Diameter saw blade 10"(250 mm) Max. depth of cut(at 90°) 3"(76 mm) Max. depth of cut(at 45°) 2"(50.8 mm) Arbor diameter 5/8"(1", 30 mm Opt.) Arbor speed 4200 rpm Table size 36"×27"(915×685mm) Table height 34-1/4"(857 mm) Sliding table capacity 3'×6'(914×1828 mm)
4'×8'(1220×2440 mm)Max. rip to right of blade 50"(1270 mm) Motor 3 HP(2HP, 5HP Opt.) N.W 407 lbs (185 kgs) G.W 497 lbs (225 kgs) Packing size 29"×36"×42" - Sliding table assembly.
- T.C.T. saw blade.
- Arbor extension for dado and dado insert.
- Hold down clamp for sliding table.
- Metal saw guard with riving knife (European type).
- Overarm saw guard with riving knife(Suva type).
-
U.L or CSA approved model.
