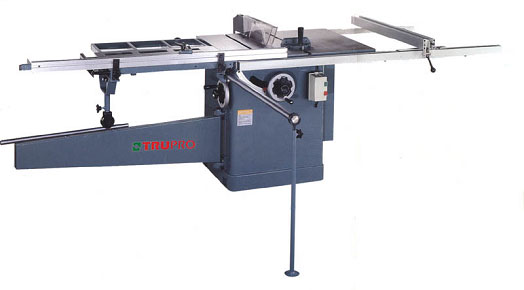

Table Saw
TAS-16L
Tilting Arbor Saw
- Heavy duty cast iron table is precision ground for accuracy.
- Anti-kickback safety guard.
- Ruggedly constructed machine frame provides maximum stability.
- Choice of two types of sliding table 3’×6’ or 4’×8’(optional).
- Dual English/Metric scale guide rail.
- Extra long guide rail.
- Overload protected magnetic switch.
Model TAS-16L Diameter saw blade 16"(405 mm) Max. depth of cut(at 90°) 5-1/2"(140 mm) Max. depth of cut(at 45°) 3-7/8"(98 mm) Arbor diameter 1"(30 mm Opt.) Arbor speed 3750 rpm Table size 48"×38"(1220×965mm) Table height 34-1/4"(857 mm) Sliding table capacity 4'×8'(1220×2440 mm) Max. rip to right of blade 50"(1270 mm) Motor 7.5HP(10HP Opt.) N.W 869 lbs (395 kgs) G.W 1034 lbs (470 kgs) Packing size 37"×44"×42" - Sliding table assembly.
- T.C.T. saw blade.
- Arbor extension for dado and dado insert.
- Hold down clamp for sliding table.
- Metal saw guard with riving knife (European type).
- Overarm saw guard with riving knife(Suva type).
-
U.L or CSA approved model.
