Tenoner & Mortiser
l Advanced PC based control.
l 18000rpm high speed spindle.
l Exclusively designed crank arm dive feeding mechanism provides faster feed with minimum trouble.
l Allows for double ends or single end tenoning.
l Tilting tenoning head.
Innovative crank arm drive feeding mechanism

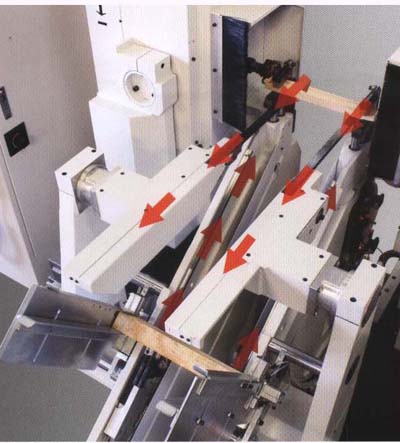

1. The specially designed feeding mechanism is driven by two crank arms, that delivers wood from loader to the cutting area at a high speed.
2. Simplified feed transmission not only reduces non-cutting time, but also minimizes trouble.
3. The wood feeding mechanism is mounted with precision linear motion guides to achieve extra stable and smooth feed motions.
Automatic lubricator
The auto lubricator deliver proper amount of lubrication oil to all linear motion guides, keeping all travelling motions smooth at all times.
Throw-away type cutterhead (standard accessory)
The right and left spindles are fitted with one each throw away type cutterhead, allowing for simultaneously cutting tenons at both ends of wood.
Cutterhead sizes : Ø25×Ø60×Ø
90mm Throw away type tungsten carbide knife inserts
Both cutterheads use tungsten carbide knife inserts to save knife sharpening time.

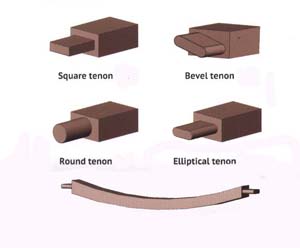

Tilting tenoning head
The tenoning head can be tilted ±45° to suit wood curvature. Adjusting angle is made by simply trning a handwheel.
Model
TEN-100H
TEN-200H

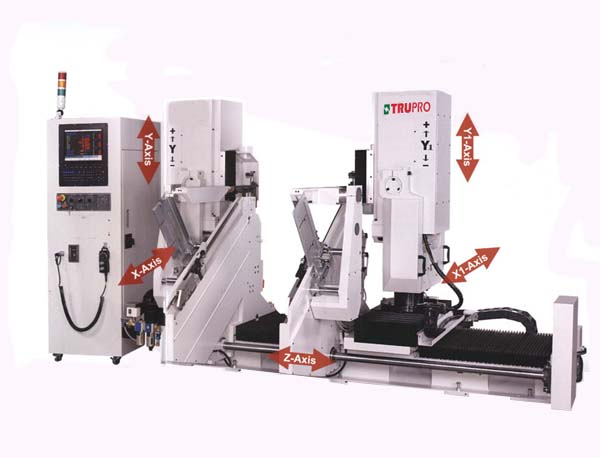

Max. width of cut capacity(Z-axis)
1300mm 2000mm X-axis feed rate
50M/min 50M/min X1-axis feed rate
50M/min 50M/min Y-axis feed rate
50M/min 50M/min Y1-axis feed rate
50M/min 50M/min Z-axis feed rate
0.667M/min 0.667M/min Spindle speed
0~18000rpm
0~18000rpm
Spindle motor(high frequency)
3.3KW×2pcs
3.3KW×2pcs
X-axis servo motor
1KW
1KW
X1-axis servo motor
1KW
1KW
Y-axis servo motor
1KW
1KW
Y1-axis servo motor
1KW
1KW
Z-axis servo motor
0.5KW
0.5KW
Net weight
2200 kg 2300 kg Machine dimension
3900×1700×
1930 mm 4600×1700×
1930 mm Packing dimension
4000×1850×
2070 mm 4700×1850×
2070 mm
