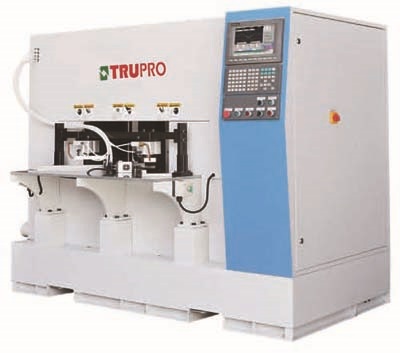

Tenoner & Mortiser

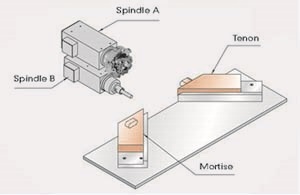

lThis machine is mounted with tenoning and mortising cutters, allowing for producing tenon and mortise at a time.
l The tenoning and mortising spindle are drive by individual high frequency motor with high rotation speed for high efficiency cutting.
lX, Y, Z-axis traverses are all driven by servo motor in combination with the linear motion guides on their slide-ways. These lead to extra smooth movement and high positioning accuracy.
lX, Y, Z-axis traverses are transmitted through ball screws.
lPneumatically sperated wood clamp and stop.
MODEL
TEN-TM
spindle motor (Tenon)
3.7KW(high frequency motor)
Spindle motor (Mortise)
2.2KW(high frequency motor)
Spindle speed (Tenon)
12000rpm
Spindle speed (Mortise)
24000rpm
Tenon capacity
Length: 0~150mm
Thickness: 0~40mm
Depth: 10~35mm
Mortise capacity
Length: 0~150mm
Thickness: 0~40mm
Depth: 10~45mm
N.W
1400 kgs
G.W
1530 kgs
Machine dimensions
1950×1500×1750mm
