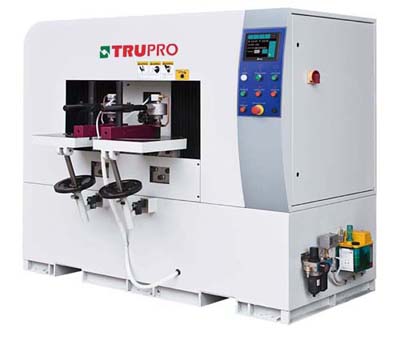

Tenoner & Mortiser
TEN-150NC
CNC Automatic Tenoning machine
MODEL
TEN-150NC
Spindle speed
10000rpm
Max. tenon width
150mm
Min. tenon thickness
35mm
Tenon depth (standard tools)
10-45mm
Production rate
15pcs/min
Table tilt
Downward
side
0~30°
0~45°
Spindle motor
5HP
N.W
1250 kgs
G.W
1380 kgs
Machine dimensions
1900×1200×1550mm
