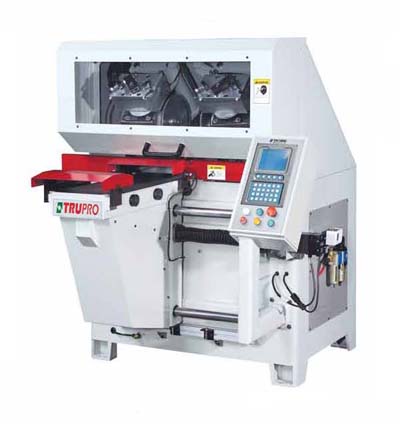

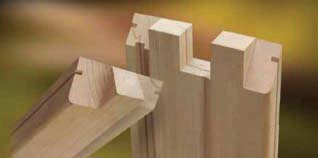

Tenoner & Mortiser
l The machine consists of one set of tenoning head and two sets of saw heads.
l The entire machine motions are controlled by a CNC controller, providing easy operation.
lRight and left movement of table is driven by a servo motor combined with ball screw transmission featuring fast travel and high accuracy positioning.
l Automatic 90° sawhead rotation is actuated by swing cylinder.
l Wood is clamped by air cylinders.
l Sawblade elevation is driven by air cylinder.
l Fast motion cycle. High efficiency. High productivity.
Double saw heads:
l Each saw head is independently driven by a motor.
l Both saw heads automatically rotate 90°.
MODEL
TEN-TF7
Capacity
Wood length
Wood width
Wood thickness
600~2500mm
130~305mm
30~50mm
Sawhead
Sawblade sizes
Saw arbor diameter
Sawblade speed
Sawblade motor
Sawhead rotation
Ø 250×3mm
Ø1"
2800rpm
3HP×2pcs
90°
Cutterhead
Cutter diameter
Cutter arbor diameter
Cutter speed
Cutter motor
Ø 200mm
Ø 40mm
5600rpm
5HP
Table
Table feed motor
1HP(servo)
Working air pressure
6kgs/cm2
Machine dimensions
1300×1700×1500mm
N.W
850 kgs
G.W
950 kgs
