Tenoner & Mortiser
TEN-115

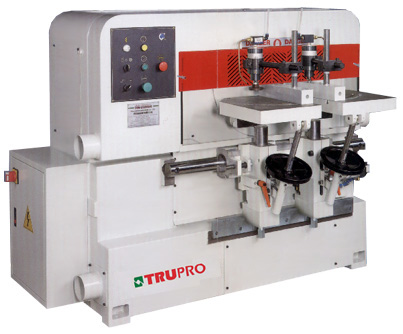

Rectangular Tenoner
Features: - Built with two tables for higher efficiency operations.
- Pneumatically operated table longitudinal traverse.
- Adjustable tenoning width.
- The tenon without removing the door, depth can be conveniently adjusted.
- Table tilts 20°
- Movable table to save time, and speed can be variable adjustment.
- Convenient setup of tenon directions at horizontal, vertical and 45°
- Miter gauge provided on the table allows for cutting bevel tenons.
- Oil bushings the table support and the disk.
- Centralized control panel provides convenient operations.
- Designed for producing various types of tenon.
- Variable table feed speed suits various types of wood material.

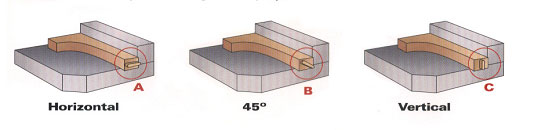

Convenient setup of tenon direction:
Model TEN-115 Spindle speed 6000 R.P.M Max. tenon width 115 + 2R mm Min. tenon depth
With standard tool
With special tool
Production rate
10~45mm
6~90mm
12 pcs/minTable tilt
Upward
Downward
Side
0~15°
0~30°
0~20°Spindle motor 5HP Cutter cycle motor 1HP N.W 1100 kgs G.W 1200 kgs Machine size 1760×1150×1320mm Packing size 1870×1240×1620mm
