Tenoner & Mortiser

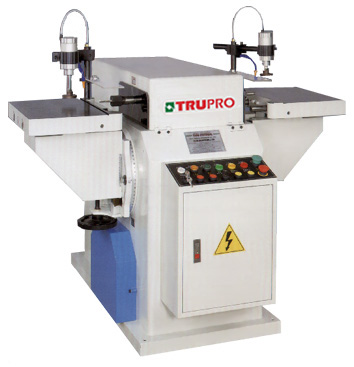

TEN-120
Oscillation Mortiser
Features: - Two tables built in the front and back of the machine provides high efficiency mortising operations.
- Air clamps provides convenient workpiece handling.
- Mortising width is adjustable.
- Mortising depth is adjustable.
- Table can be tilted 20°
- Table feed forward speed is variable.
- Centralized control panel provides convenient operations.
- Mortising depth is accurately controlled.
- Table height is adjustable.
- Mortising bit oscillating speed is variable.
Model TEN-120 Max. width of mortise 120 mm Max. depth of mortise 50 mm Oscillation rate 6.6~400 stroke/min Table vertical adjustment 3" Cutter speed 9500 R.P.M Max.clamp thickness 4" Spindle motor 2HP Oscillation motor 1/2HP Air pressure 5~6 kg/cm2 N.W 700 kgs G.W 800 kgs Machine size 1300×1200×1200 mm Packing size 1430×1340×1450 mm
