Tenoner & Mortiser

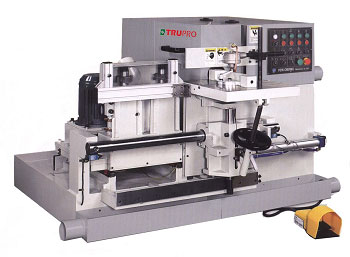

TEN-TF1
Single sided cutting boring moulding machine

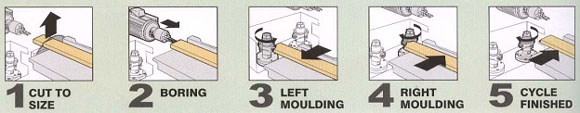

TEN-TF1 MOTION ILLUSTRATION:
Features: - Single side moulding.
- The machine employs a PLC control for easy operation and smooth motion sequence.
- Foot switch controls motion cycle.
- Combine three functions in one; cutting, moulding and boring.
- Entire motions are actuated by air hydraulic combination cylinders, providing fast, stable and smooth motions.
- Table tilts 30 front downward.
- The table support is fitted with oil less bushings.
Model TEN-TF1 Cutting unit Spindle motor(1) 3 HP Blade size 450 mm Spindle speed 3000 RPM Boring unit Spindle motor(1) 3 HP Boring 17 17/22 22 MM (5-spindle boring head) Spindle speed 3000 RPM Depth adjustment 70 mm Moulding Spindle motor(2) 5 HP Spindle diameter(2) 30 mm Spindle speed 8000 RPM Machine dimensions 1600×1600×1400 mm Packing size 1930×1720×1500 mm N.W / G.W 1100 / 1200 kg
